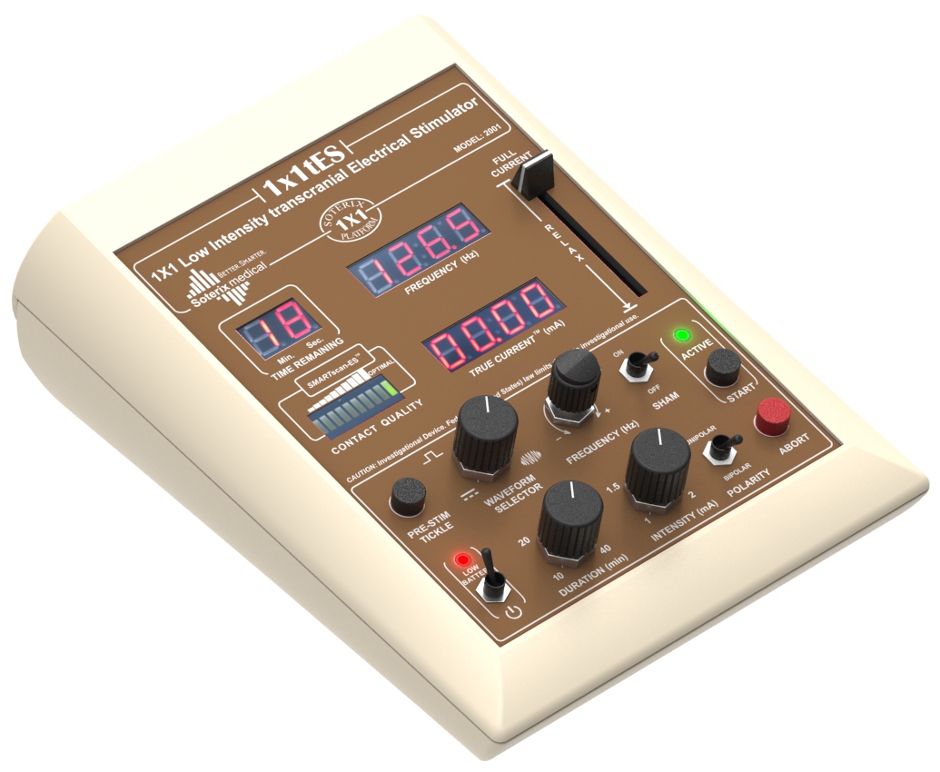

Soterix 1x1 tES Device - tDCS, tACS, tPCS, and tRNS
The Complete System for tES
Complete Waveforms: The Soterix Medical 1x1 tES device provides reproduction of tDCS, tACS, tPCS, and tRNS protocols used in clinical trials. The 1x1 tES is thus a single device that can be programmed to provide a broad range waveforms. For any tES waveform, a matched sham waveform is enabled simply by engaging the sham switch. The Soterix Medical 1x1 tES is thus the best option for research labs that want the flexibility to test across tES waveforms with the established reliability and precision of the Soterix Medical 1x1 platform.
The Soterix Medical brand represents the highest quality and standards in tES because each device is designed based on the latest science and biomedical engineering. The Open-Panel interface provides the simplest most-intuitive interface while embedded electronics work over-time to ensure precision and tolerability, even under unexpected conditions. Advancing the practice of tDCS requires devices and protocols integrating the latest advances in technology and science. Soterix Medical was founded to support this effort and continues to provide unparalleled support to every user - with devices and accessories that incorporate exclusive features for rigorous trial design, tolerated procedures, and reproducible protocols. Introduced in 2014, the 1x1-tES stimulator represents the most sophisticated stimulator ever built for tES while building on the validated 1x1 platform.
Industry Leading Precision and Control
The most essential feature of a programmable tES device is precision and control of the current output. The Soterix Medical 1x1 tES uses state-of-the-art electrical and biomedical engineering design to provide the highest temporal and intensity precision of any tES stimulation device: Adjustable output current in increments of 10 µA, 12-bit D/A, variable sampling time for accurate reconstruction of higher frequencies - 71 µs resolution for 200Hz signals.
Control means that across physiological loads (e.g. head size and electrode impedance), the target current is maintained. Soterix Medical is the only company that provides an independent current meter, the “True-Current” feature, which demonstrates reliability continuously during use. Researchers and clinicians used the Soterix Medical 1x1 tES when the highest quality stimulation signal is required.
Other commercial tES device at 150 Hz
Soterix Medical tES device at 150 Hz
Simple to use Open-Panel controls
The Soterix Medical 1x1 platform devices stand out for their simple controls and interfaces. Program the device precisely in seconds, with no complex drop-down menu, hidden settings, or need to establish a wireless connection with an external computer. The device program is clearly visible through the knob settings and backlit features like SmartScan and TrueCurrent. Waveform and frequency control knobs and displays make programming straightforward. With Soterix Medical Open-Panel, simplicity and clarity mean that set-up time and potential programming errors are reduced.
Device Features
Smartscan: Provides a continuous visual indication of electrode quality before and during stimulation. From pre-stimulation set-up, to during stimulation monitoring, to post-stimulation confirmation, the Soterix Medical SmartScan feature provides an intuitive and clear indication of electrode contact quality. Use the SmartScan during set-up to adjust electrodes and head-gear for optimal fit. During stimulation, SmartScan provides a constant indication of electrode quality and can be monitored during adjustments (e.g. addition of saline to drying electrodes). After stimulation, SmartScan confirms a successful trial. Because “resistance” is not meaningful for tES, SmartScan was developed by Soterix Medical engineers to provide clinical investigators with a simple to read indication of contact quality.
True Current: Clearly indicates the actual current supplied at the moment. What other devices promise, the 1×1 tDCS delivers. The back-lit display can be monitored during stimulation ramp up to confirm that the targeted current intensity is achieved.
Tickle: May be used to supply a very weak current prior to tDCS to help condition the skin. Tickle may be used to both condition skin prior to tDCS and for naïve subject anxious about stimulation. A custom on-off waveform pattern generates mild and brief sensation under electrodes.
Relax: Allows the clinician to use a simple sliding bar to transiently decrease the current from the pre-set value, for example, based on subject feedback. Based on feedback from leading clinical centers, Soterix Medical exclusive feature, RELAX, accommodates subjects who may be anxious when stimulation is initiated or during the course of stimulation. The RELAX slider may be adjusted from full to reduced intensity based on subject perception without interrupting or aborting stimulation.
Auto Sham: Simple and intelligent sham waveforms. An automatic stimulation sham feature that is engaged with a simple switch. Auto-sham automatically calculated and produces a sham waveform based on the indicated “real” waveform. For example, for a corresponding real waveform of 1.5 mA and 10 minutes. auto-sham will provide a ramp up/down to 1.5 mA at the start of stimulation, and again after 10 minutes, with the timer automatically adjusted such that the total run time us exactly matched to the real case. Based on the Soterix Medical Open-Panel design principle: with no complicated programming or hidden drop-down menus required.
